How can I create L-shaped rooms easily?
Moving the blue dots located on each wall will create new vertices. By dragging one of the blue dots along the boundary you can effectively split that wall in two segments while keeping it straight.
Select the segment you need to extend outwards and click on the rectangular handle. A pop-up will appear allowing you to change to an oval-shaped handle. This enables you to pull out that portion of the wall to create an L-shaped room.
Below is a step by step guide of the above outlined steps:
- Drag over your room and size one side of the L
- Drag the nearest blue dot to the point you want the L to 'turn'

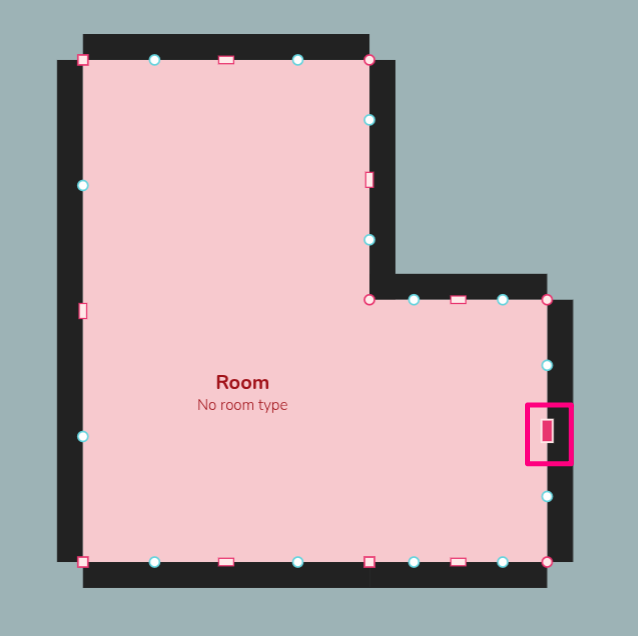

- Select the rectangle handle in the middle of that new section of wall and select the option that isn't currently selected - this option allows you to extend out just that section between the pink dots, rather than the whole wall
- Drag the pink handle to make your L!
